															IPC-MHxxxW Series Wireless WIFI Camera
- To work with the camera, you need to connect the DC12V power adapter, before using the camera, please remember to connect the DC12V power to camera.
- The camera supports 2 modes of connection, you can choose any one to connect to your WIFI Router
- Wired connection
- Hotspot WIFI Connection
					 Wired Modes of Connection





				First of all, connect your smartphone to the same camera router WIFI, go to Google or Apple store, download camhiPro APP,
1. Wired connection.
Camera plugged into router network using RJ45 cable, start camhiPro APP,
Click Add camera  ,   Click IP camera
   ,   Click IP camera

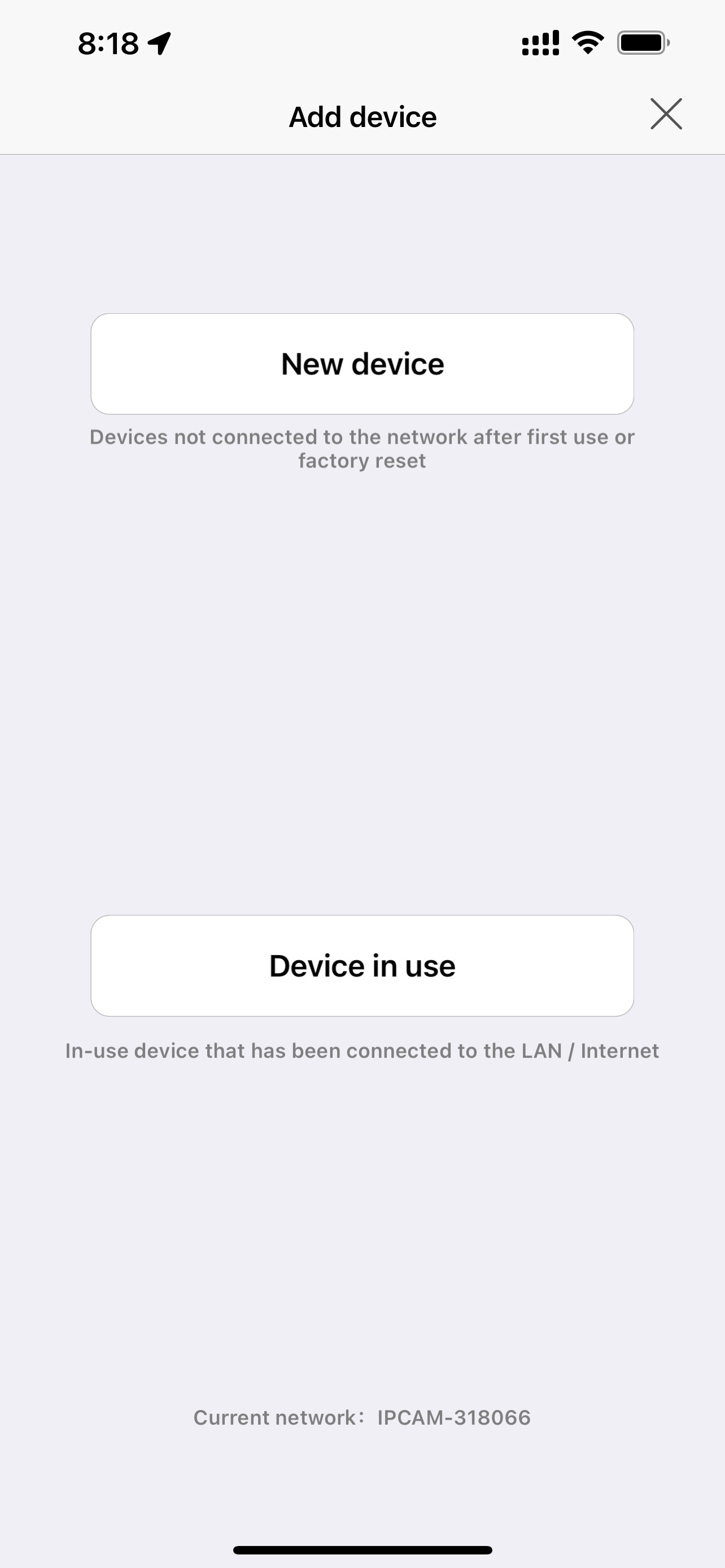

click New device  ,    Click Power is on, next step
   ,    Click Power is on, next step
click Connected network cable  ,   click on the new ID found
    ,   click on the new ID found
2. Now start to configure the camera wireless
Wireless configuration, select your router wireless name (remember 2.4G WiFi, 2MP camera does not support 5G WIFI), enter the router wireless password,
Click Config  ,   Use wireless and adds levices
    ,   Use wireless and adds levices
Enter the camera name and password (default admin), click Add to, select the camera installation name, click confirm
Now you can disconnect the wired connection , browse the camera images through the mobile APP
					 Hotspot WIFI Modes of Connection





				 ,   Click IP camera
   ,   Click IP camera  click New device
click New device  ,    Click Power is on, next step
   ,    Click Power is on, next step  Click Not connected to the network cable
Click Not connected to the network cable  ,Click Go add
    ,Click Go add  Scanning the camera box Cloud ID QR label click Skip
Scanning the camera box Cloud ID QR label click Skip  , Click Join
    , Click Join  2.Now start to configure the camera wireless
Wireless configuration, select your router wireless name (remember 2.4G WiFi, 2MP camera does not support 5G WIFI), enter the router wireless password,
Click Config
2.Now start to configure the camera wireless
Wireless configuration, select your router wireless name (remember 2.4G WiFi, 2MP camera does not support 5G WIFI), enter the router wireless password,
Click Config  ,   Use wireless and adds levices
    ,   Use wireless and adds levices  Enter the camera name and password (default admin), click Add to, select the camera installation name, click confirm
Enter the camera name and password (default admin), click Add to, select the camera installation name, click confirm  Now you can disconnect the wired connection , browse the camera images through the mobile APP
Attention .
If the WIFI configuration process, display Failed to connect to devicetry connecting device aqain[Connection failed(-1)1
You need to connect the camera hotspot via cell phone wifi network.
Enter the cell phone wifi connection settings,find the name is IPC-XXXXXX wifi name
Now you can disconnect the wired connection , browse the camera images through the mobile APP
Attention .
If the WIFI configuration process, display Failed to connect to devicetry connecting device aqain[Connection failed(-1)1
You need to connect the camera hotspot via cell phone wifi network.
Enter the cell phone wifi connection settings,find the name is IPC-XXXXXX wifi name click connect,enter the password 01234567,click link.
Then repeat the above steps
click connect,enter the password 01234567,click link.
Then repeat the above steps
					 How to use RTSP





				- rtsp://admin:admin@ip/11
- rtsp://admin:admin@ip/12
