- F No: 1.0，5MP HD. (2592*1944)
- HD Starlight
- 5MP F1.0 3.6mm 6mm cctv lens black light 1/1.8″

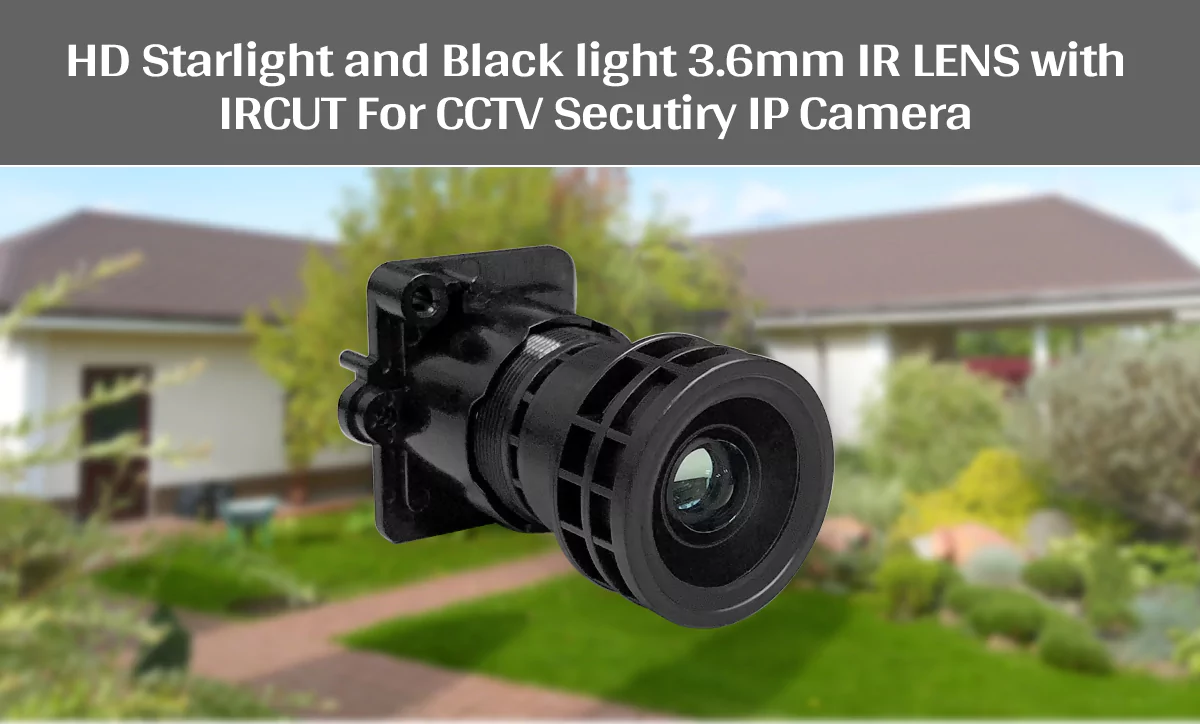

HD Starlight 5MP F1.0 3.6mm 6mm cctv lens black light 1/1.8″-22227
Price range: $13.59 through $525.31

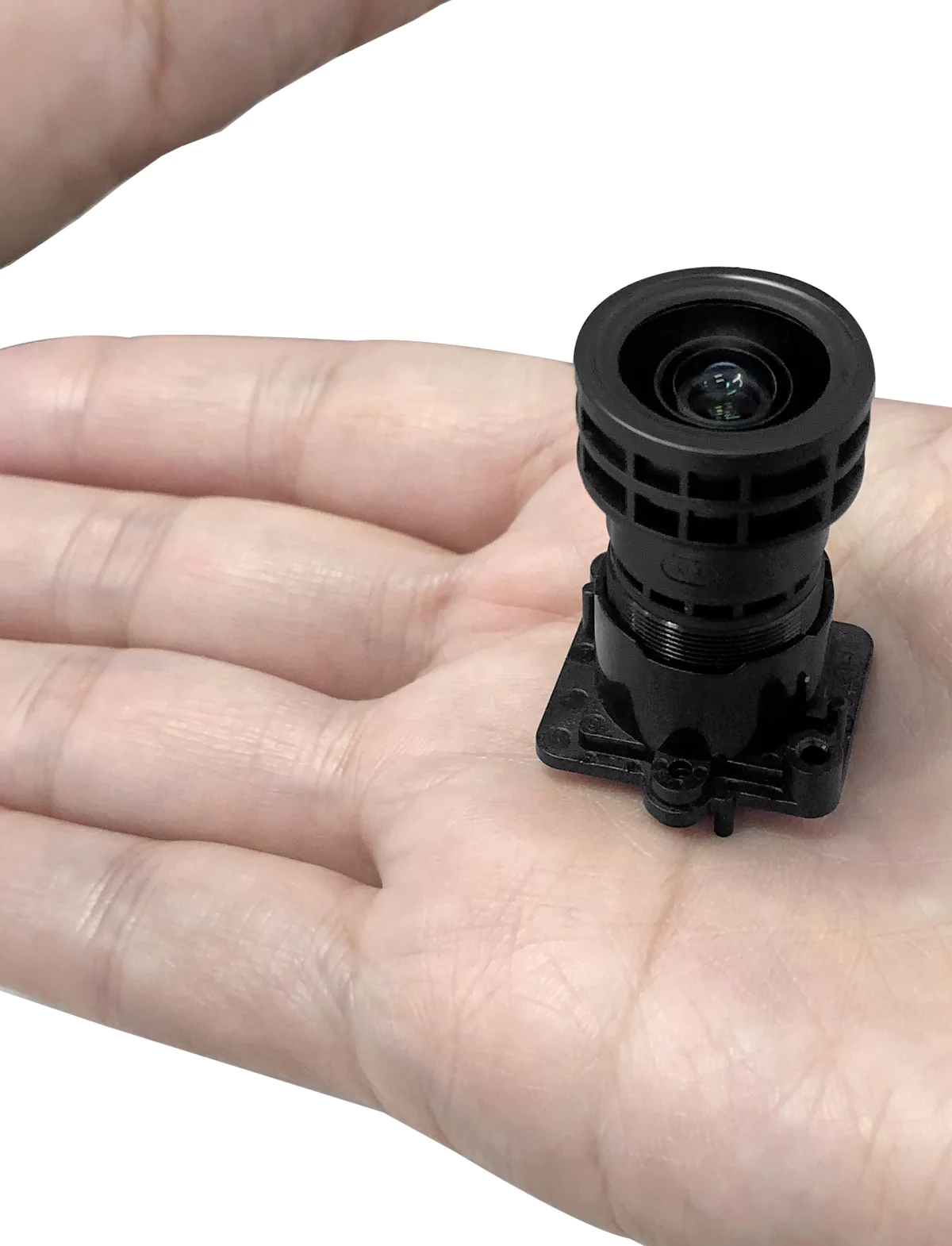

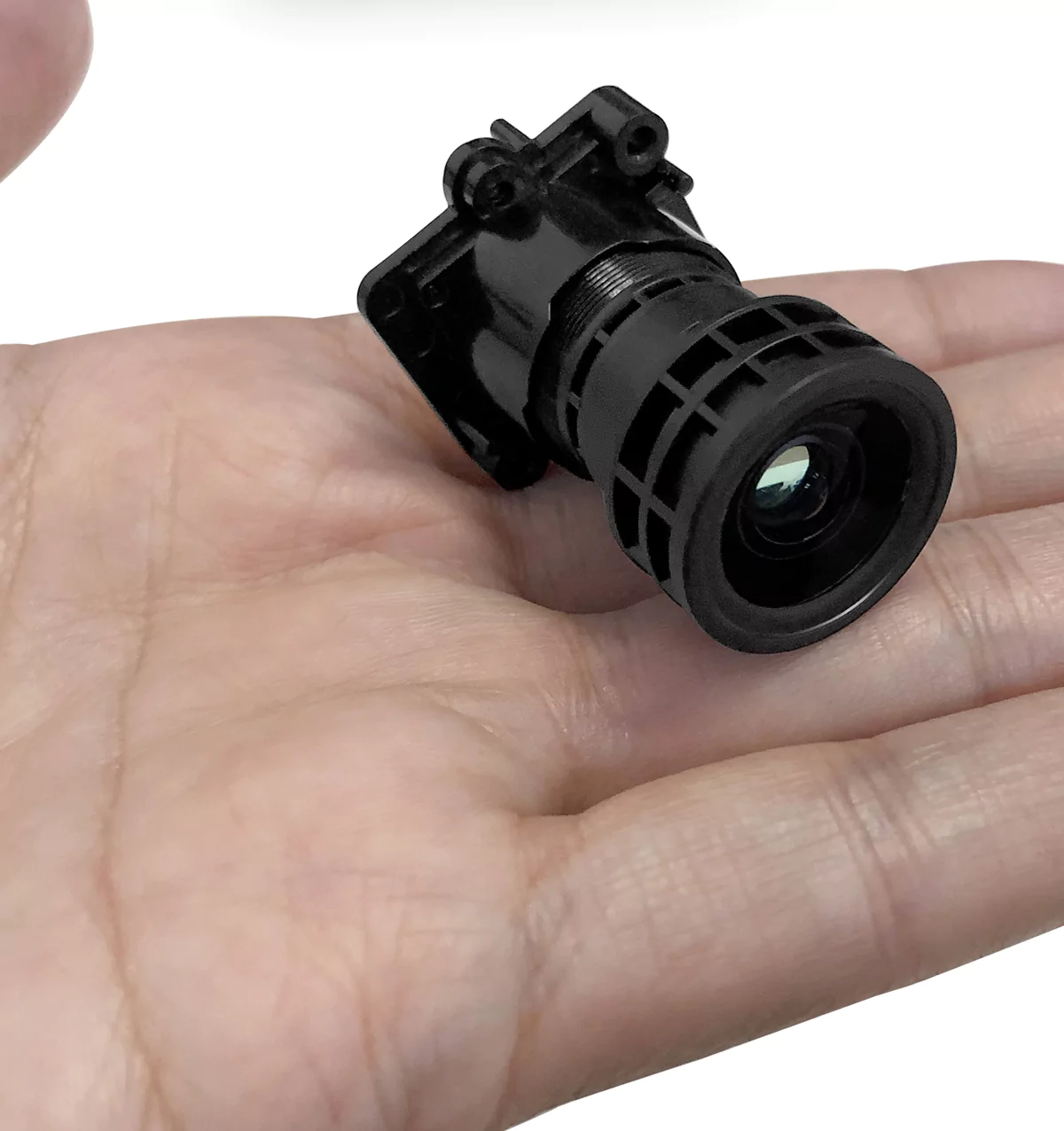

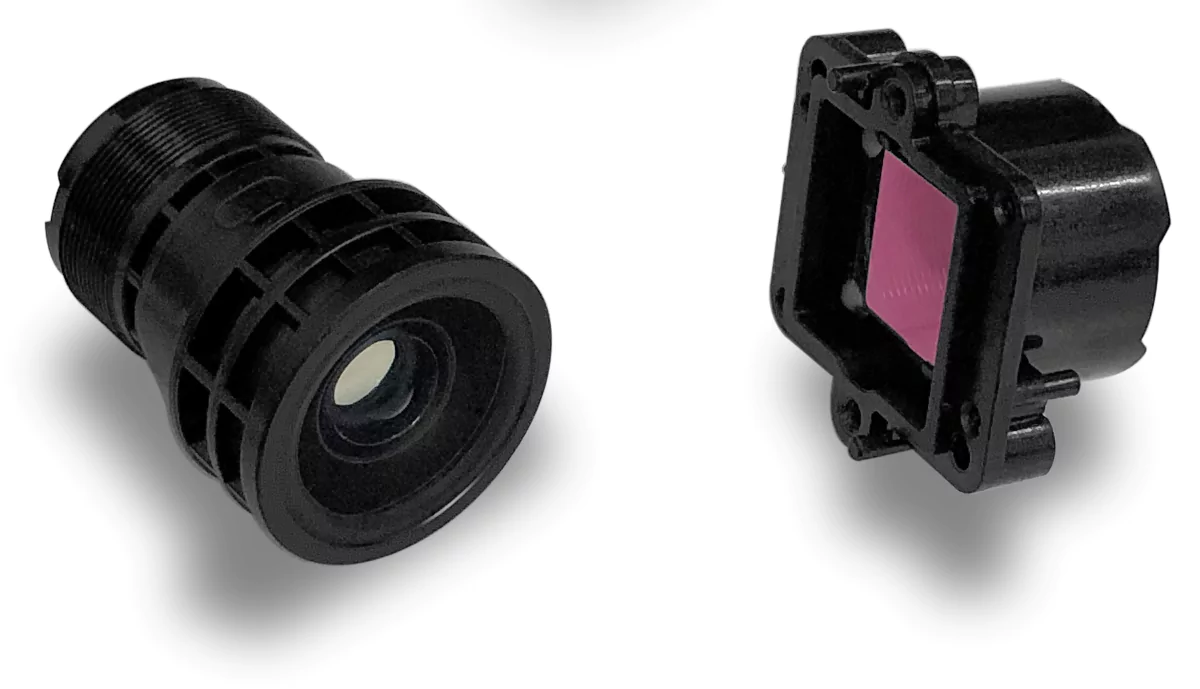

Pictures About This Item
            |

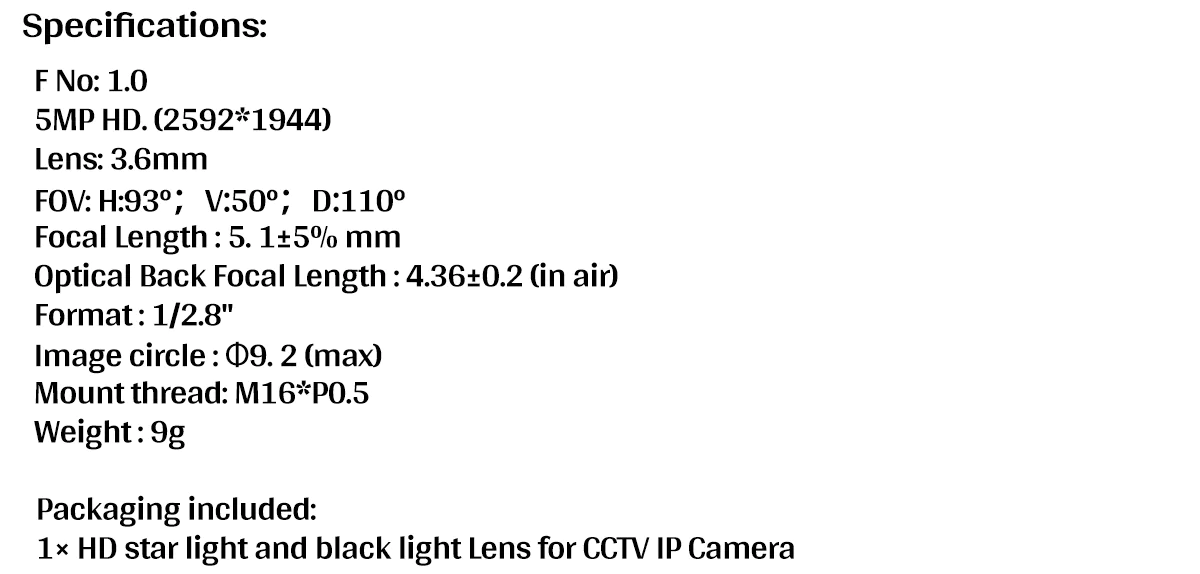

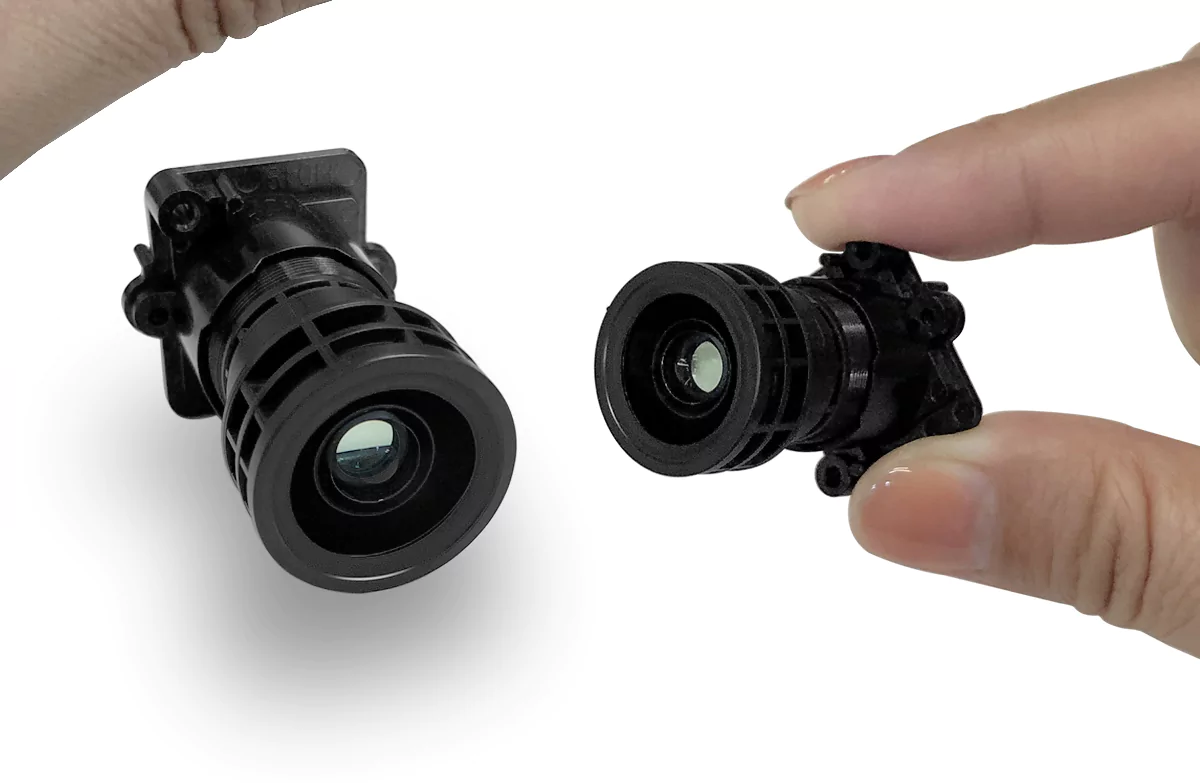

CCTV Lens Product Description
F No: 1.0
5MP HD. (2592*1944)
Lens: 3.6mm

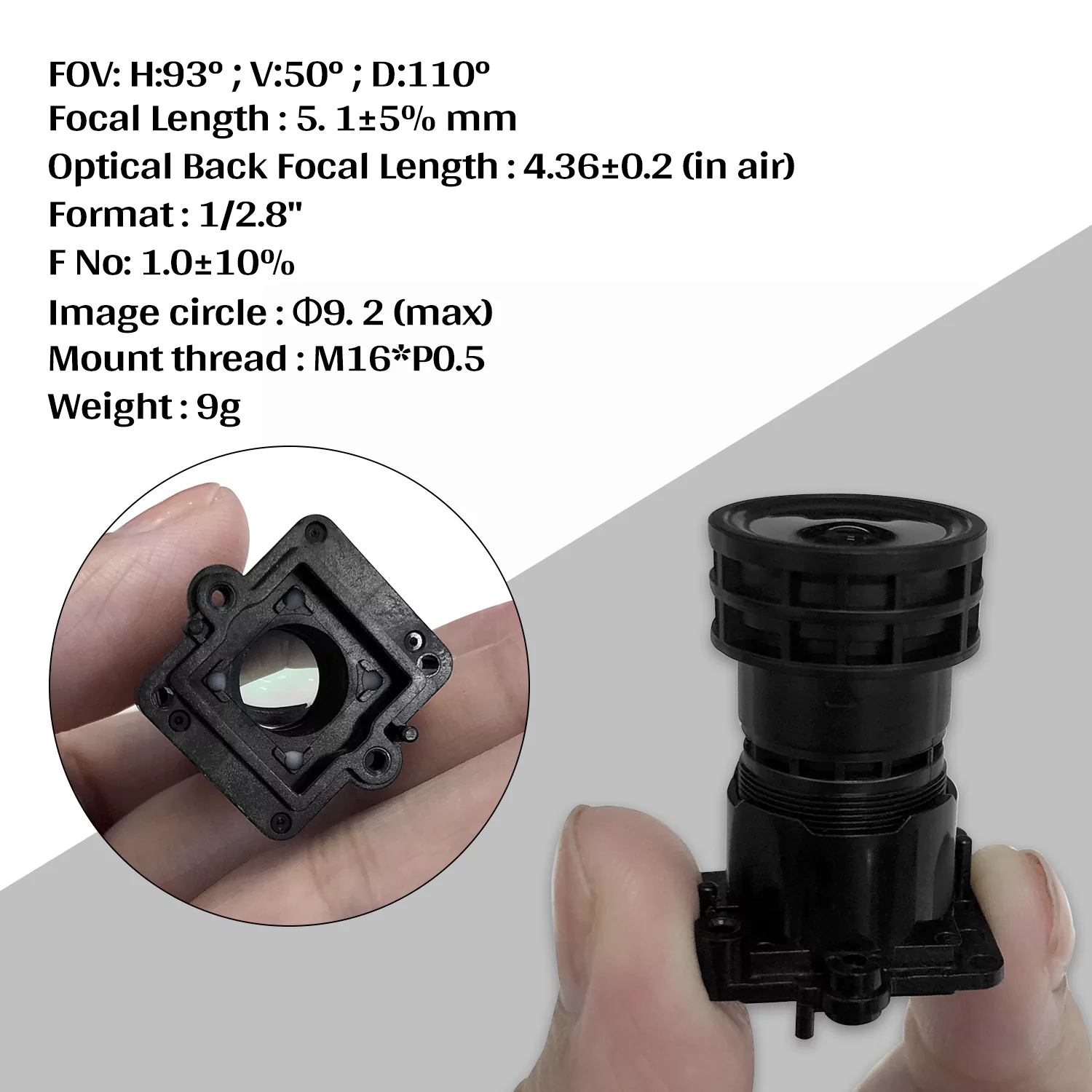

FOV: H:93°；V:50°；D:110°
Focal Length : 5. 1±5% mm
Optical Back Focal Length : 4.36±0.2 (in air)
Format : 1/2.8″
Image circle : Φ9. 2 (max)
Mount thread: M16*P0.5
Weight : 9g
Package List:
1 * 5MP Lens

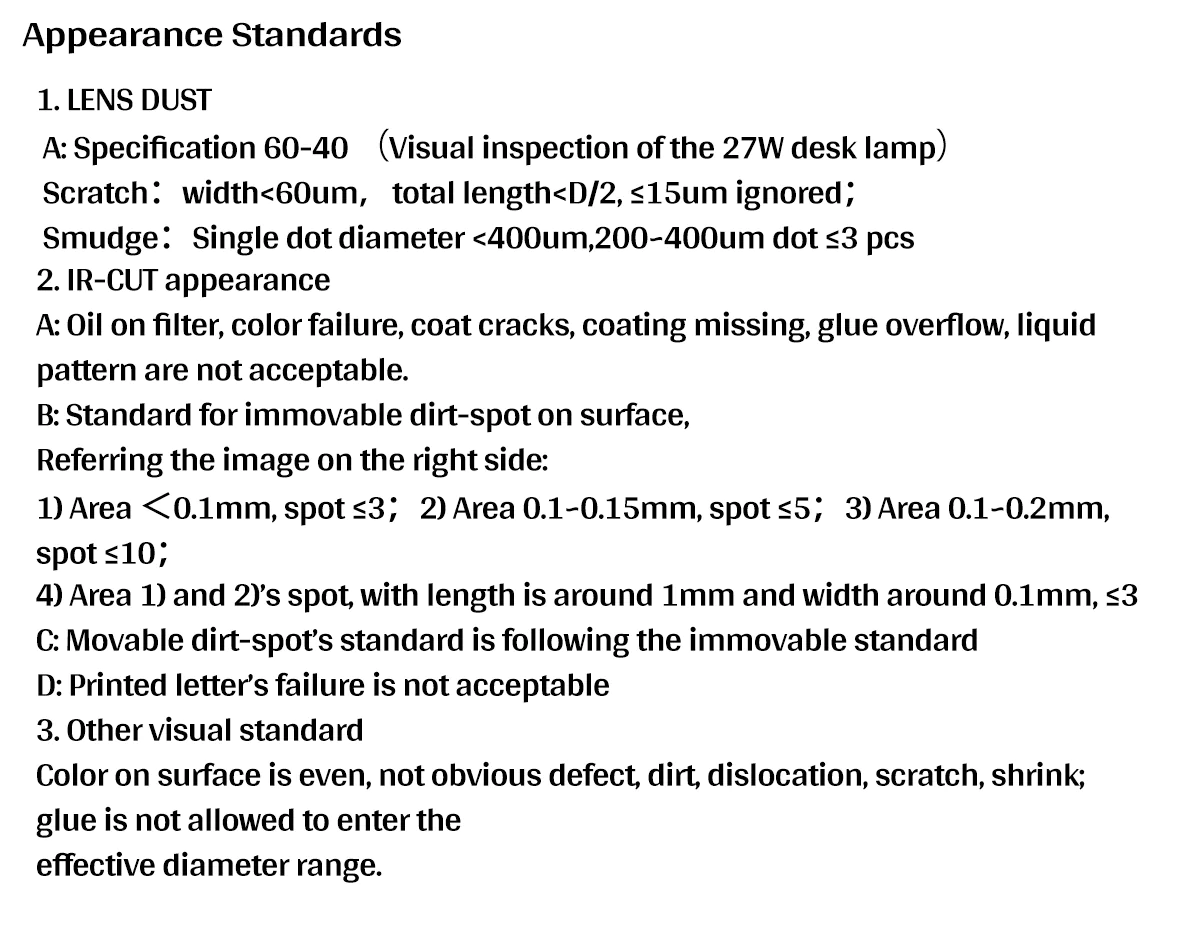

Appearance Standards
1. LENS DUST
A: Specification 60-40 （Visual inspection of the 27W desk lamp）
Scratch：width<60um，total length<D/2, ≤15um ignored；
Smudge：Single dot diameter <400um,200~400um dot ≤3 pcs

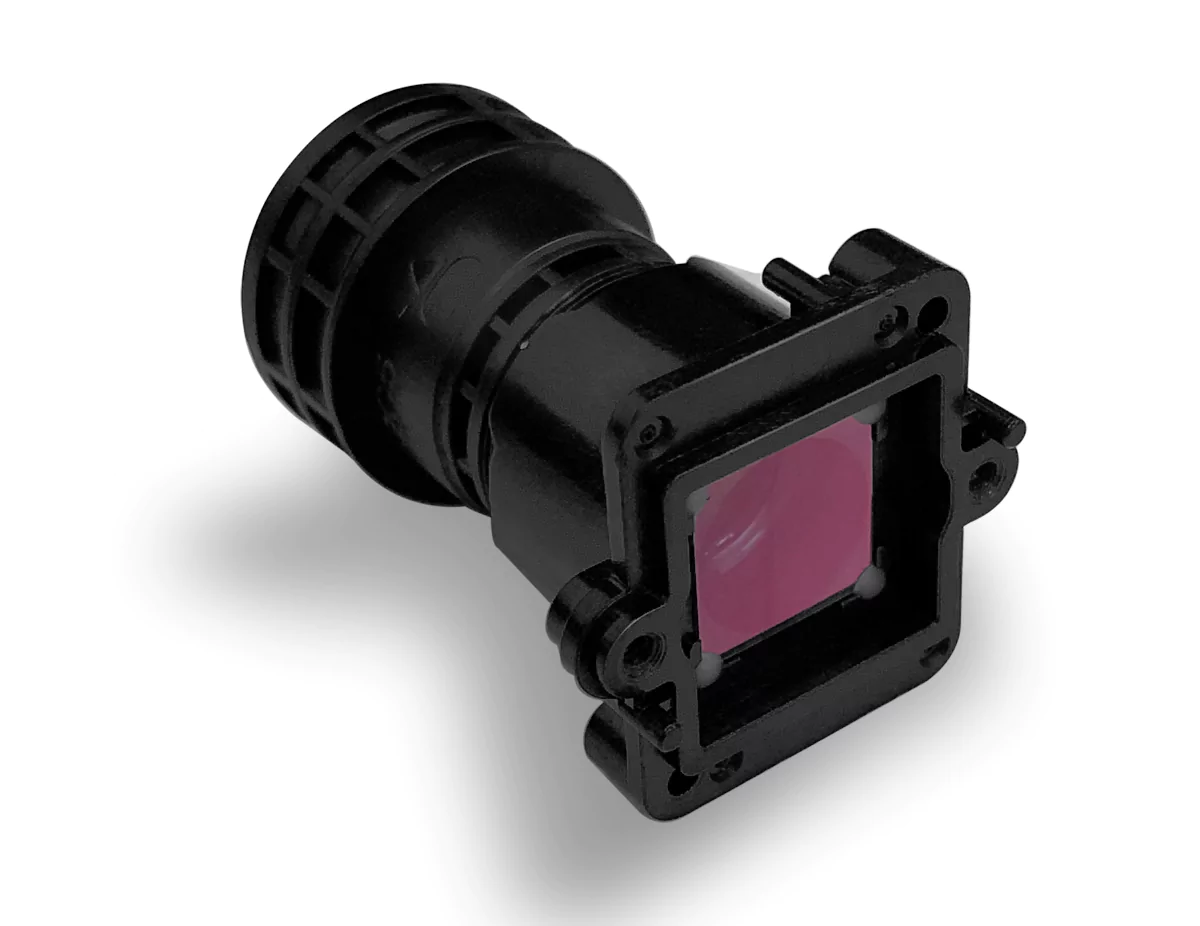

2. IR-CUT appearance
A: Oil on filter, color failure, coat cracks, coating missing, glue overflow, liquid pattern are not acceptable.
B: Standard for immovable dirt-spot on surface,
Referring the image on the right side:
1) Area ＜0.1mm, spot ≤3；2) Area 0.1~0.15mm, spot ≤5；3) Area 0.1~0.2mm, spot ≤10；
4) Area 1) and 2)’s spot, with length is around 1mm and width around 0.1mm, ≤3
C: Movable dirt-spot’s standard is following the immovable standard
D: Printed letter’s failure is not acceptable
3. Other visual standard
Color on surface is even, not obvious defect, dirt, dislocation, scratch, shrink; glue is not allowed to enter the
effective diameter range.
| Weight | 1 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
| Piece | 1x piece, 8x piece, 20x piece, 48x piece |
| Lens | 3.6mm, 6mm |
